Description
Product Details
Prysmian 6242Y is a flat PVC insulated and sheathed low voltage wiring cable typically used for small power and lighting applications. Two cores with bare CPC
- · BS6004 Grey PVC sheathed cable with CPC
- · Used in light industrial & domestic wiring
- · Plain annealed copper conductors
- · No. of cores: 2

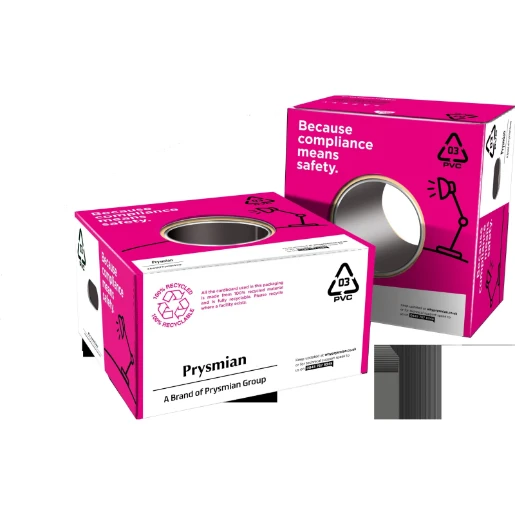

- · Product Packaging: Reel
- · Suitable for commercial and domestic applications
- · 300/500V operating voltage
- · Material: PVC
- · Standard: BS6004
Technical Specifications
Power cable < 1 kV, for fixed installations
|
| Nominal voltage U |
500 V |
| Low temperature resistant according to EN 60811-504+505+506 |
No |
| Oil resistant according to IEC 60811-404 |
No |
| Screen |
No |
| Drain wire |
Yes |
| Permitted cable outer temperature during assembling/handling |
0 – 60 °C |
| Max. conductor temperature |
70 °C |
| Number of cores |
2 |
| Nominal voltage U0 |
300 V |
| Nominal cross sectional area of conductor |
2.5 mm² |
| Conductor surface |
Bare |
| Sheath material |
Polyvinyl chloride (PVC) |
| Sheath colour |
Grey |
| Core insulation material |
Polyvinyl chloride (PVC) |
| Core identification |
Colour |
| Core colour |
Several |
| Protective barrier |
None |
| Conductor category |
Class 1 = solid |
| Conductor material |
Copper |
