Description

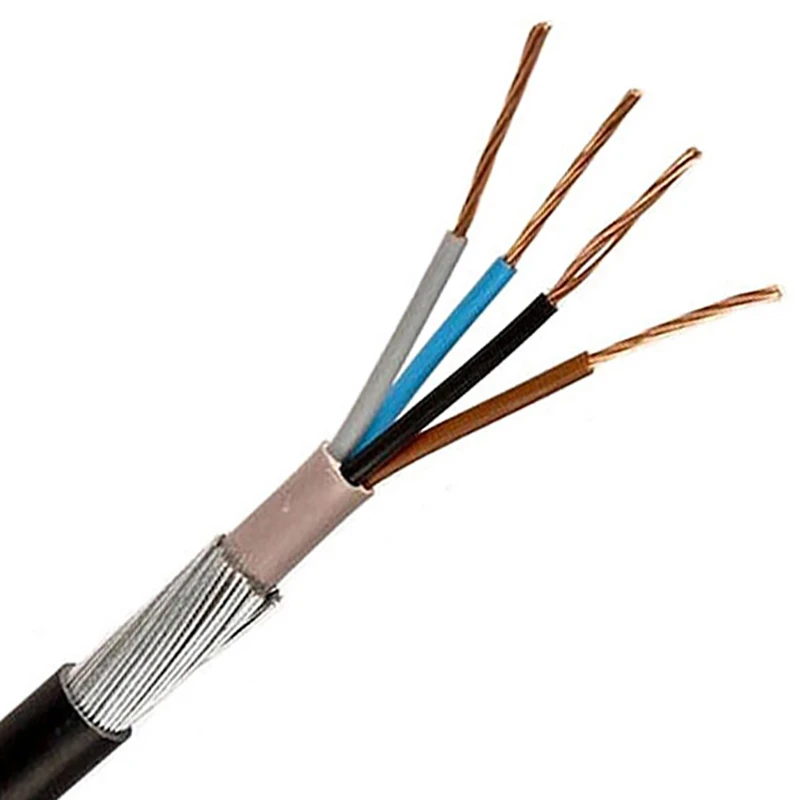

Part Number: 2500147564 MPN: 20145271 Product Type: Steel Wire Armoured (SWA)
Product Details
This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered.
- · Cable Size: 4.0mm
- · Colour: Black
- · Length in metres: 1
- · No. of cores: 4
- · Product Packaging: Cut
- · Low Smoke Fume
- · Standard: BS6724
Technical Specifications
Power cable >= 1 kV, for fixed installations |
|
| Max. conductor temperature | 90 °C |
|---|---|
| Screen | No |
| Lead sheath | No |
| Halogen free according to IEC 60754-2 | No |
| Permitted cable outer temperature during assembling/handling | 0 – 80 °C |
| Nominal cross sectional area of conductor | 4 mm² |
| Nominal voltage U | 1000 kV |
| Number of cores | 4 |
| Nominal voltage U0 | 600 kV |
| Outer diameter approx. | 14.9 mm |
Conductor surface: Bare Core insulation material: Polyolefin Conductor material: Copper
Concentric conductor: None Conductor category: Class 2 = stranded Shape of conductor: Round
Core identification: Colour Sheath colour: Black Sheath material: Polyolefin
