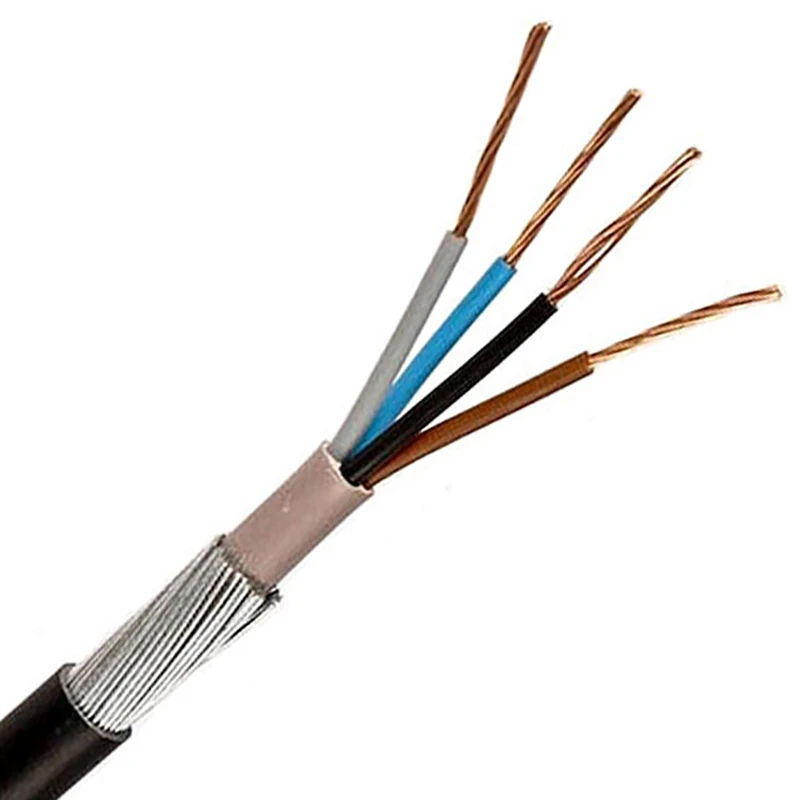

6944LSH 4.0mm Black XLPE/SWA/Basec Cable 4-Core 1m


Part Number: 2500147564       MPN: 20145271      Product Type: Steel Wire Armoured (SWA)

Product Details

This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered.

  • · Cable Size: 4.0mm
  • · Colour: Black
  • · Length in metres: 1
  • · No. of cores: 4
  • · Product Packaging: Cut
  • · Low Smoke Fume
  • · Standard: BS6724

Technical Specifications

Power cable >= 1 kV, for fixed installations
Max. conductor temperature 90 °C
Screen No
Lead sheath No
Halogen free according to IEC 60754-2 No
Permitted cable outer temperature during assembling/handling 0 – 80 °C
Nominal cross sectional area of conductor 4 mm²
Nominal voltage U 1000 kV
Number of cores 4
Nominal voltage U0 600 kV
Outer diameter approx. 14.9 mm


Conductor surface: Bare   Core insulation material: Polyolefin      Conductor material: Copper

Concentric conductor: None     Conductor category:  Class 2 = stranded     Shape of conductor: Round

Core identification: Colour      Sheath colour: Black      Sheath material: Polyolefin
