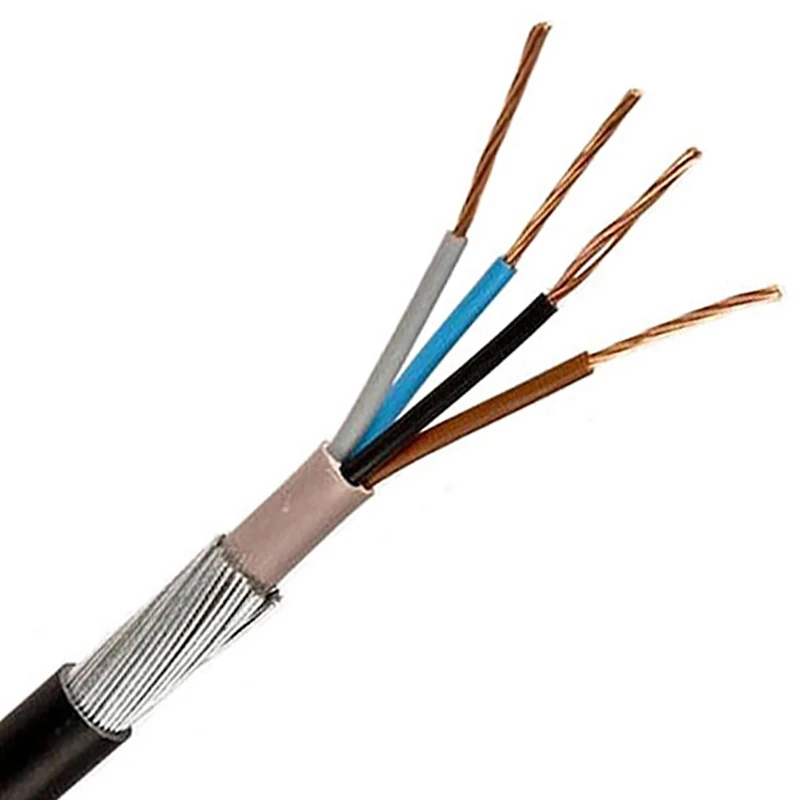

6944LSH 1.5mm Black XLPE/SWA/Basec Cable 4-Core 1m


Part Number: 2500147542     MPN: 20145265     Product Type: Steel Wire Armoured (SWA)

Product Details

This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered.

  • · Cable Size: 1.5mm
  • · Colour: Black
  • · Length in metres: 1
  • · No. of cores: 4
  • · Product Packaging: Cut
  • · Low Smoke Fume
  • · Standard: BS6724

Technical Specifications

Power cable >= 1 kV, for fixed installations
Nominal voltage U0 600 kV
Halogen free according to IEC 60754-2 No
Lead sheath No
Screen No
Permitted cable outer temperature during assembling/handling 0 – 80 °C
Outer diameter approx. 11.9 mm
Nominal cross sectional area of conductor 1.5 mm²
Nominal voltage U 1000 kV
Max. conductor temperature 90 °C
Number of cores 4


Core insulation material:  Polyolefin     Concentric conductor: None     Conductor category: Class 2 = stranded

Sheath material: Polyolefin      Sheath colour: Black      Shape of conductor: Round    Conductor surface: Bare

Core identification: Colour   Conductor material: Copper
