Description
Part Number: 2500042691 MPN: 20175541 Product Type: Fire Cables
Product Details

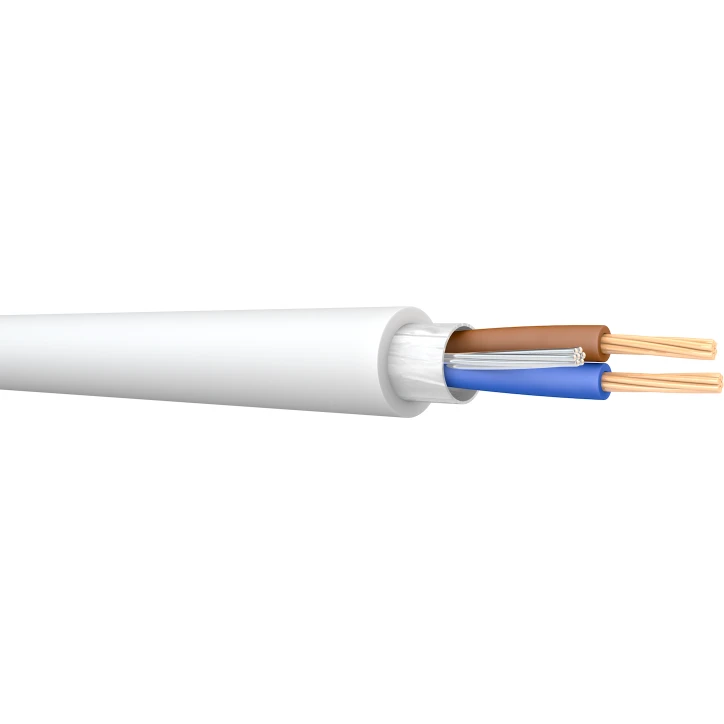

Prysmian LSX® is a Low Smoke, Zero Halogen (LSOH®) and flame retardant cable developed to address specific needs of the modern building services and systems
- · Low voltage circuits typically lighting and power distribution, in buildings.
- · Suitable for clipped, surface, tray and void installation.
- · Low smoke, zero halogen and flame retardant.
- · Ideal for all non-emergency circuits in public buildings.
- · Fully screened design provides EMC protection for signal clarity.
- · Low Smole Zero Halogen
Technical Specifications
Power cable < 1 kV, for fixed installations |
|
| Conductor Diameter | 4 mm |
|---|---|
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Screen | Yes |
| Oil resistant according to IEC 60811-404 | No |
| Drain wire | Yes |
| Permitted cable outer temperature during assembling/handling | 0 – 60 °C |
| Outer diameter approx. | 12.1 mm |
| Max. conductor temperature | 70 °C |
| Number of cores | 2 |
| Nominal voltage U0 | 300 V |
| Nominal cross sectional area of conductor | 4 mm² |
| Conductor surface | Bare |
|---|---|
| Nominal voltage U | 500 V |
| Core colour | Several |
| Reaction-to-fire according to EN 13501-6: Class | Aca |
| Protective barrier | None |
| Sheath colour | White |
| Core identification | Colour |
| Conductor material | Copper |
| Sheath material | Polyolefin |
| Conductor category | Class 2 = stranded |
| Core insulation material | Polyolefin |
