Description
Part Number: 2500043087 MPN: 20108633 Product Type: Fire Cables
Product Details

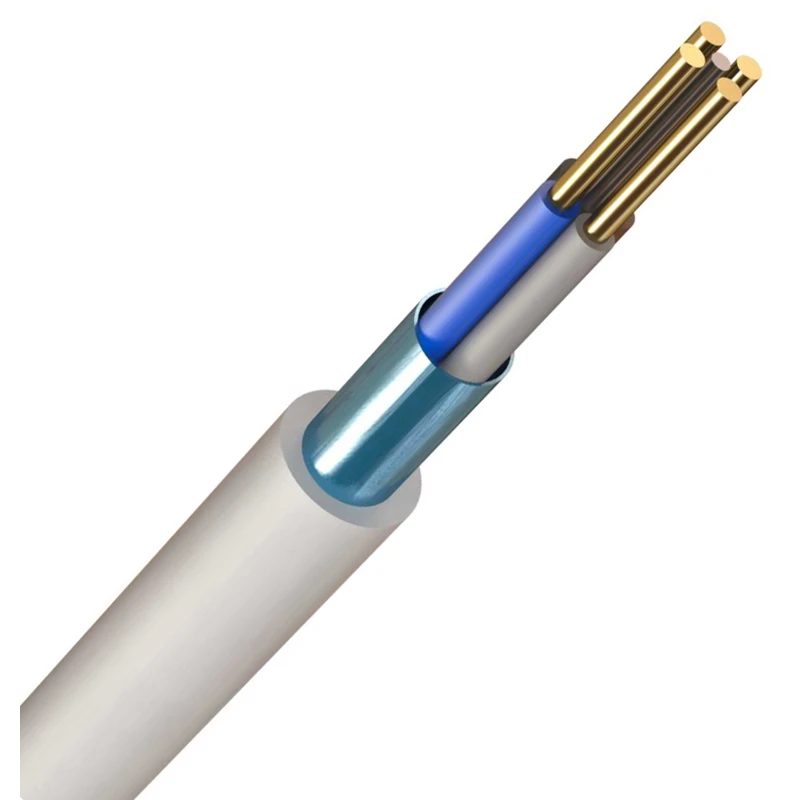

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards
- · Robust thermoplastic LSOH sheath
- · Laminated aluminium tape bonded to sheath
- · High performance damage resistant Insudite insulation
- · Plain annealed solid copper conductors 1.0mm – 2.5mm
- · Plain annealed stranded copper conductors for 4.0mm
Technical Specifications
Power cable < 1 kV, for fixed installations |
|
| Nominal voltage U | 500 V |
|---|---|
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Oil resistant according to IEC 60811-404 | No |
| Screen | Yes |
| Drain wire | Yes |
| Permitted cable outer temperature during assembling/handling | 0 – 60 °C |
| Outer diameter approx. | 10 mm |
| Max. conductor temperature | 70 °C |
| Number of cores | 4 |
| Nominal voltage U0 | 300 V |
| Sheath material | Polyolefin |
|---|---|
| Nominal cross sectional area of conductor | 1.5 mm² |
| Core identification | Colour |
| Core colour | Several |
| Protective barrier | None |
| Conductor category | Class 1 = solid |
| Conductor material | Copper |
| Sheath colour | Red |
| Conductor surface | Bare |
| Core insulation material | Polyolefin |
