Description
Part Number: 2500043020 MPN: 20145515 Product Type: Fire Cables
Product Details

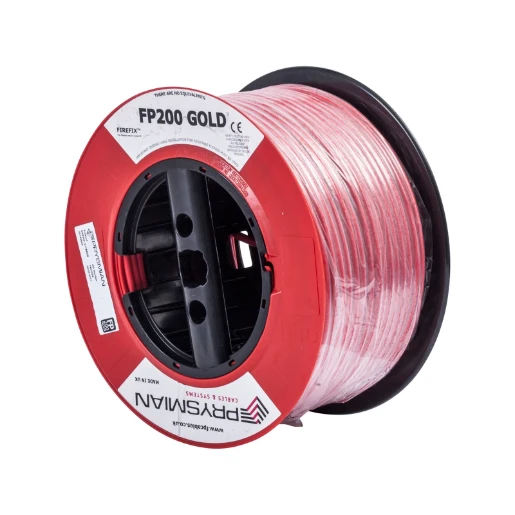

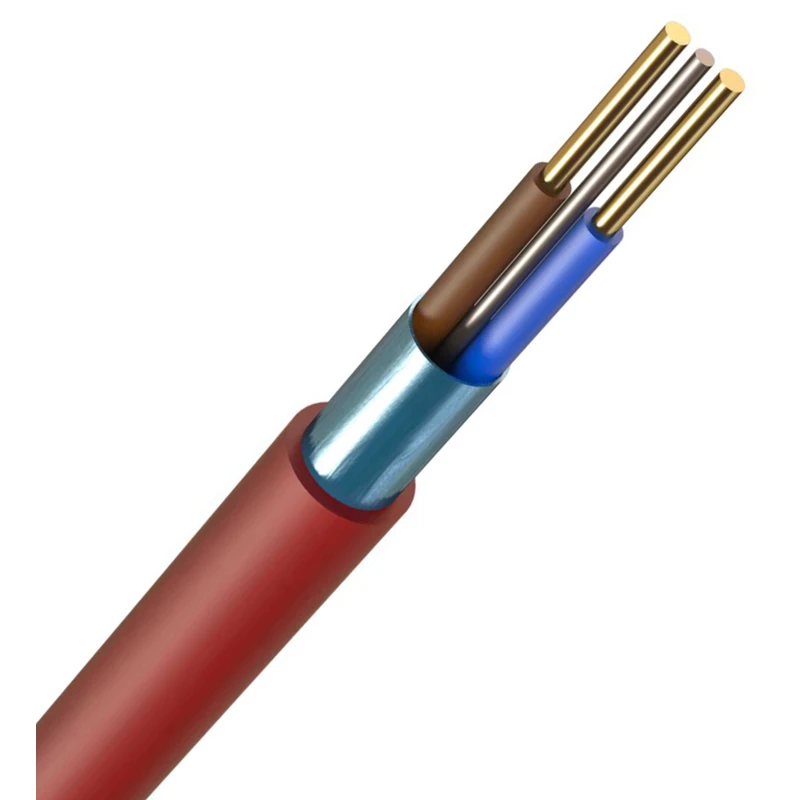

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards
- · Cable Size: 1.5mm
- · Colour: Red
- · Length in metres: 100
- · No. of cores: 2
- · Product Packaging: Coil
Technical Specifications
Power cable < 1 kV, for fixed installations |
|
| Nominal voltage U | 500 V |
|---|---|
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Oil resistant according to IEC 60811-404 | No |
| Screen | Yes |
| Drain wire | Yes |
| Permitted cable outer temperature during assembling/handling | 0 – 60 °C |
| Outer diameter approx. | 7.9 mm |
| Max. conductor temperature | 70 °C |
| Number of cores | 2 |
| Nominal voltage U0 | 300 V |
| Core insulation material | Polyolefin |
|---|---|
| Core identification | Colour |
| Nominal cross sectional area of conductor | 1.5 mm² |
| Core colour | Several |
| Protective barrier | None |
| Conductor material | Copper |
| Conductor category | Class 1 = solid |
| Sheath colour | Black |
| Conductor surface | Bare |
| Sheath material | Polyolefin |
