Description

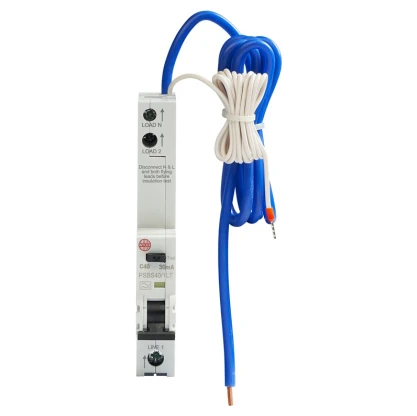

Part Number: 2500477761 MPN: PSBS50/1LT Product Type: Residual Current Devices
Product Details
- Single Module 10kA RCBO
- 50A C curve (MCB), 30mA Type A (RCD)
- Neutral & Earth Tail lengths = 1200mm
- Suitable for use in Wylex NH Distribution Boards
Technical Specifications
Earth leakage circuit breaker/RCBO |
|
Width in number of modular spacings | 1 |
---|---|
Flush-mounted installation | No |
Concurrently switching N-neutral | No |
Anti-nuisance tripping version | No |
With interlocking device | No |
Connectable conductor cross section solid-core | 0.75 – 16 mm² |
Ambient temperature during operating | -5 – 45 °C |
Connectable conductor cross section multi-wired | 0.75 – 16 mm² |
Current limiting class | 3 |
Number of poles (total) | 1 |
Rated insulation voltage Ui | 400 V |
Rated fault current | 0.03 A |
ripping characteristic (type/curve) | C |
---|---|
Over voltage category | 3 |
Rated current | 50 A |
Number of protected poles | 1 |
Rated voltage | 230 V |
Rated short-circuit breaking capacity according to EN 61009 | 10 kA |
Rated impulse-withstand voltage (Uimp) | 4 kV |
Leakage current type | A |
Voltage type | AC |
Disconnection characteristic | Undelayed |
Frequency | 50 Hz |
Degree of protection (IP rating) | IP20 |
