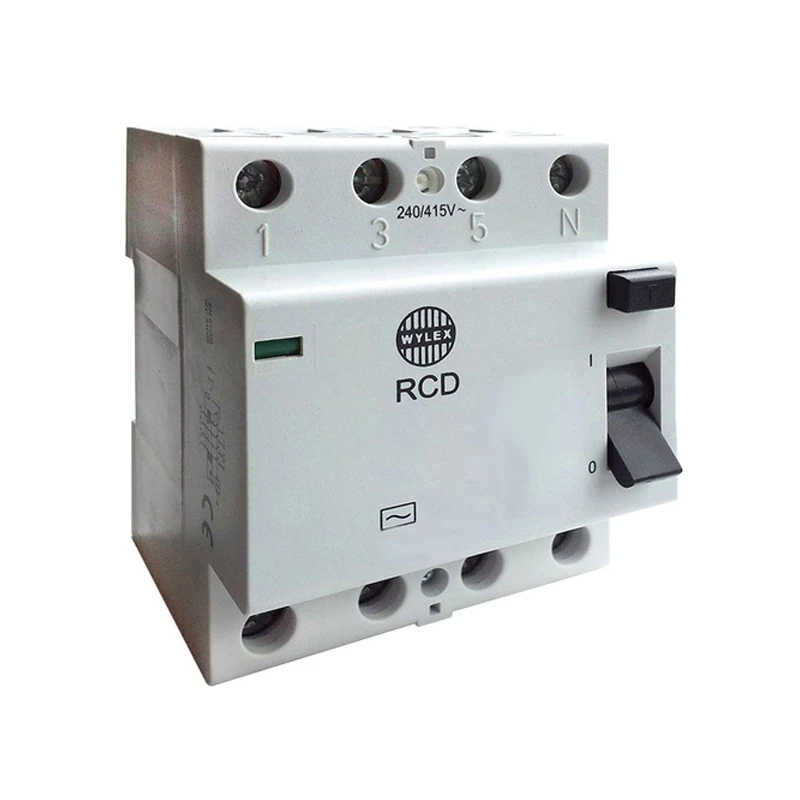

63A 100mA TYPE AC 4P RCD
£61.12
Part Number: 2500052788 MPN: WRM63/4 Product Type: Residual Current Devices
Description
Part Number: 2500052788 MPN: WRM63/4 Product Type: Residual Current Devices
Product Details
This residual current circuit breaker, provides valuable additional protection to almost any type of installation by detecting earth fault current below the level sensed by traditional overcurrent device such as fuses of miniature circuit breaker. The RCD
- Four Pole RCCB
- 63 100mA
- Type AC
- For use with Wylex NH distribution boards
- For incoming options, can be used with NH4PINKIT connection kit
- Contact position indication on the dolly handle
- Terminal Capacity 35mm
Technical Specifications
Residual current circuit breaker (RCCB) |
|
| Leakage current type | AC |
|---|---|
| Degree of protection (IP rating) | IP20 |
| Mounting method | Symmetric |
| Frequency | 1/2 inch |
| Rated insulation voltage Ui | 400 V |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Rated fault current | 0.1 A |
| Width in number of modular spacings | 4 |
|---|---|
| Number of poles | 4 |
| Rated voltage | 415 V |
| Rated current | 63 A |
| With interlocking device | No |
| Selective protection | No |
| Additional equipment possible | No |
