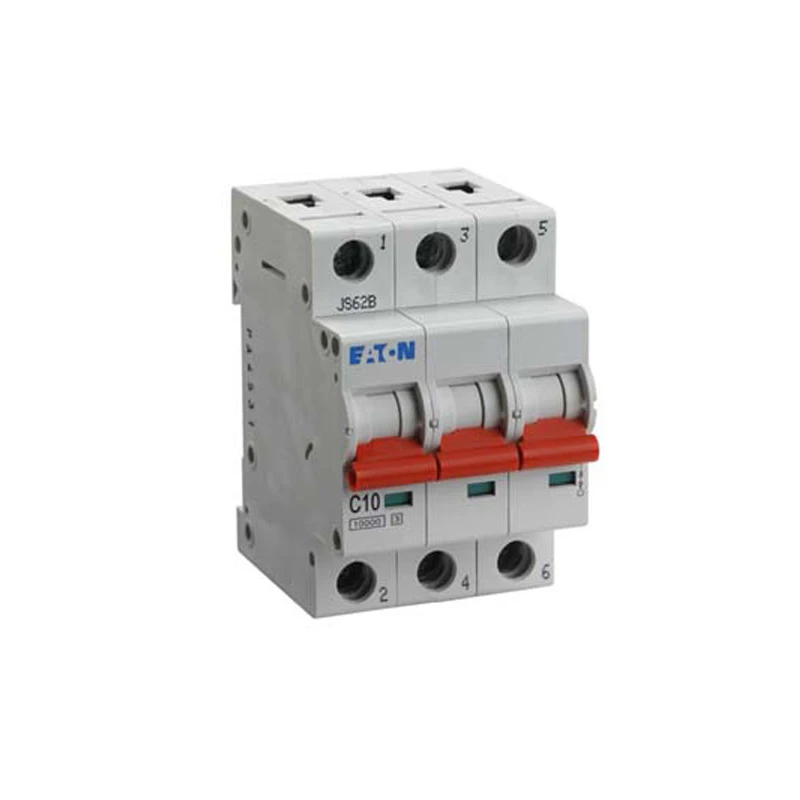

MCB Triple Pole Type C 10A 10/15Ka 54 x 80 x 75mm

£92.64

Part Number: 2500331187               MPN: EMCH310                Product Type: Miniature Circuit Breakers

Description

Part Number: 2500331187               MPN: EMCH310                Product Type: Miniature Circuit Breakers

Product Details

EM miniature circuit-breaker, 3 pole, trip type: C, rated operational current In: 10 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, rated switching capacity according to IEC/EN 60898-1: 10 kA, switchgear for residential and non-residential applications

  • DIN rail mountable
  • Suitable for use with both pin and comb type busbar systems
  • Suites RCBOs, RCCBs and isolators
  • Positive contact is flag indicator
  • Operating temperature: -25 to 55 °C
  • Impulse withstand voltage: 5kV
  • Energy limiting class 3
  • Certified by KEMA
  • Designed & tested in accordance with IEC 60898 & IEC 60947-2

Technical Specifications

Miniature circuit breaker (MCB)
Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA
Additional equipment possible Yes
Flush-mounted installation Yes
Concurrently switching N-neutral No
Explosion-proof No
Ambient temperature during operating -25 – 55 °C
Connectable conductor cross section multi-wired 1 – 25 mm²
Connectable conductor cross section solid-core 1 – 25 mm²
Frequency 50 – 60 Hz
Rated impulse-withstand voltage (Uimp) 4 kV
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0 kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0 kA
Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA



Voltage type AC
Width in number of modular spacings 3
Number of poles (total) 3
Pollution degree 2
Over voltage category 3
Current limiting class 3
Rated insulation voltage Ui 440 V
Number of protected poles 3
Recess depth 70.5 mm
Rated current 10 A
Degree of protection (IP rating) IP20
Rated voltage 240 V
Tripping characteristic (type/curve) C
