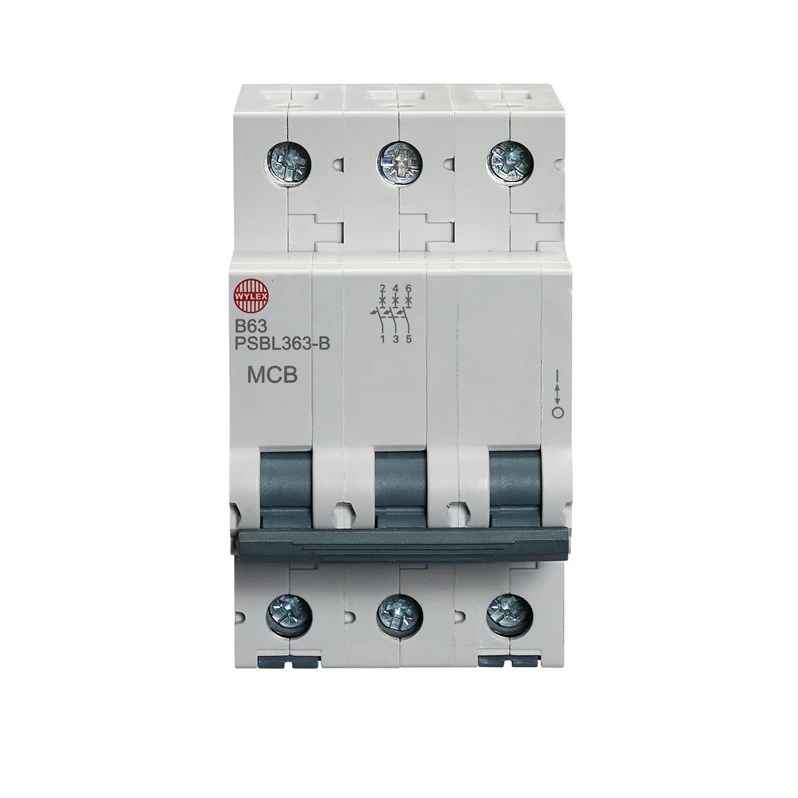

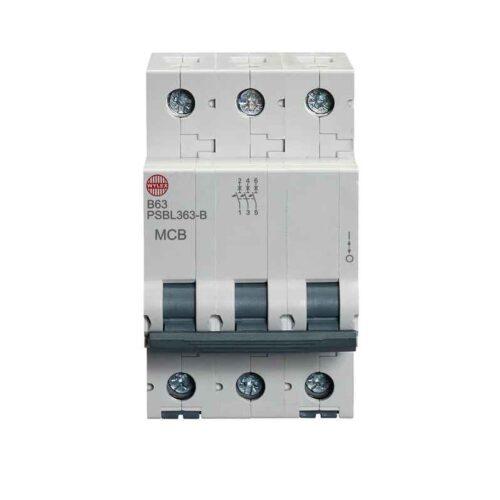

63A Three pole MCB B curve 10kA
£108.84
Part Number: 2501515331 MPN: PSBL363-B Product Type: Miniature Circuit Breakers
Description
Part Number: 2501515331 MPN: PSBL363-B Product Type: Miniature Circuit Breakers
Product Details
- B curve trip characterisitic (3-5In)
- Three Pole MCB
- 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC
- Energy limiting Class 3
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Width in number of modular spacings | 3 |
|---|---|
| Flush-mounted installation | No |
| Additional equipment possible | No |
| Concurrently switching N-neutral | No |
| Connectable conductor cross section multi-wired | 0.75 – 25 mm² |
| Ambient temperature during operating | -5 – 40 °C |
| Frequency | 50 – 50 Hz |
| Rated current | 63 A |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Number of poles (total) | 3 |
| Degree of protection (IP rating) | IP20 |
|---|---|
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
| Over voltage category | 3 |
| Rated voltage | 230 V |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Number of protected poles | 3 |
| Current limiting class | 3 |
| Rated insulation voltage Ui | 400 V |
| Voltage type | AC |
| Tripping characteristic (type/curve) | B |
